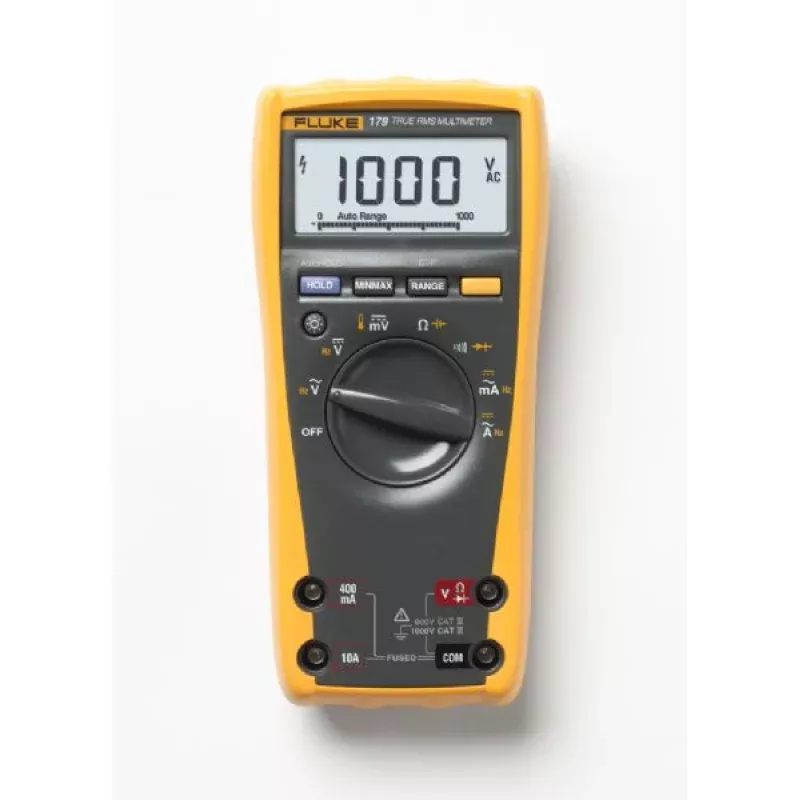

Fluke 179 True-RMS Digital Multimeter

Fluke 179 True-RMS Digital Multimeter

Products usually ship within 1 business day.

The Fluke 179 True-rms Digital Multimeter is the industry-standard troubleshooting tool for electrical and electronic systems. This incredibly versatile multimeter makes a perfect front-line troubleshooting tool with an input protection rating of CAT III 1000 V, CAT IV 600 V. The built-in temperature measurement with the included thermocouple, analog bar graph and backlit digital display make it easier to take the measurements you need.

A full set of basic and advanced troubleshooting capabilities including:

• Manual and automatic ranging
• Display Hold and Auto Hold
• Min/Max-Average recording
• Voltage measurements to 1000 V AC or DC
• Current measurements to 10 A AC/DC
• Resistance to 50 M; capacitance to 10,000 F, frequency to 100 kHz; temperature from -40 to 400

Key features

• 1000V AC/DC; 10A AC/DC (with test leads and current jacks); resistance to 50 M; capacitance to 10,000 F, frequency to 100 kHz; temperature from -40 to 400
• Robust, fast and accurate with manual and automatic ranging, Display Hold, Auto Hold, and Min/Max-Average recording
• Backlit digital display, analog bar graph, and built-in temperature measurements with included thermocouple.

What’s in the box:

• 179 Digital Multimeter
• 80BK Temperature Probe
• Installed 9V battery
• Test leads
• Quick Reference Guide

Fluke179 – User’s Manual

Fluke179 – Quick Reference Guide

Fluke179 – Data Sheet

Specifications

Voltage DC: Accuracy (0.09% + 2) Max. Resolution 0.1 mV Maximum 1000 V Voltage AC: Accuracy (1.0% + 3) Max. Resolution 0.1 mV Maximum 1000 V Current DC: Accuracy (1.0% + 3) Max. Resolution 0.01 mA Maximum 10 A Current AC: Accuracy (1.5% + 3) Max. Resolution 0.01 mA Maximum 10 A Resistance: Accuracy (0.9% + 1) Max. Resolution 0.1 Maximum 50 M Capacitance: Accuracy (1.2% + 2) Max. Resolution 1 nF Maximum 10,000 F Frequency: Accuracy (0.1% + 1) Max. Resolution 0.01 Hz Maximum 100 kHz Temperature Accuracy (1.0% + 10) Max. Resolution 0.1C Maximum -40C / 400C Operating Temperature: -10C to +50C Storage Temperature: -30C to +60C Humidity (without condensation): 0% 90% (0C 35C)
0% 70% (35C 50C) Overvoltage Category: EN 610101 to 1000 V CAT III
EN 610101 to 600 V CAT IV Agency Approvals: UL, CSA, TV listed and VDE Pending Battery Life: Alkaline ~200 hours typical, without backlight
